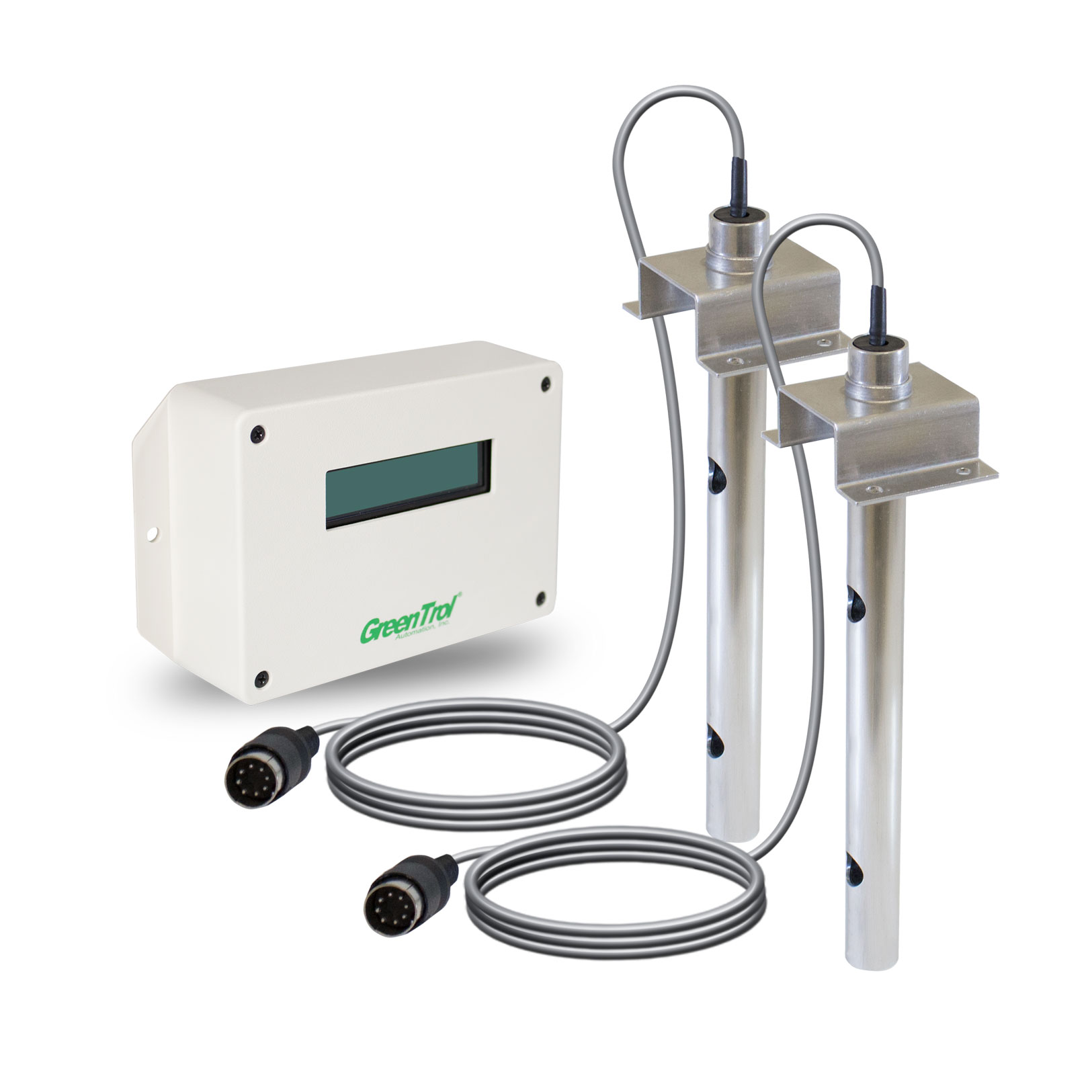

The GF-A2000-DI is provided with a single integrated duct insertion probe. The GF-A2000-DI provides a linear analog output signal for the average airflow, AO1. A second analog output, AO2, can be assigned to temperature or one of the notification alarms. A contact closure relay is provided that can be assigned to the notification alarms. The GF-A2000 can be configured for I-P or SI units of measure. Although the transmitter is “plug and play” and operates on power up, it is fully configurable in the field using the pushbutton interface and LCD.
Airflow Measurement: Provides the average airflow rate in FPM [m/s] or CFM [LPS] on the LCD and to analog output AO1 and optionally AO2 when two probes are provided
Configurable Ranges: 0-5V/1-5V or 0-10V/2-10V- specify at time of order
Temperature Measurement: Provides the velocity weighted or arithmetic average temperature in ⁰F [ ⁰C] on the LCD and to analog output AO2 when AO2 is assigned to temperature
Notification Alarms
High/Low Airflow Alarm
System Trouble Alarm
Note: Alarms can be assigned to the contact closure relay or analog output AO2

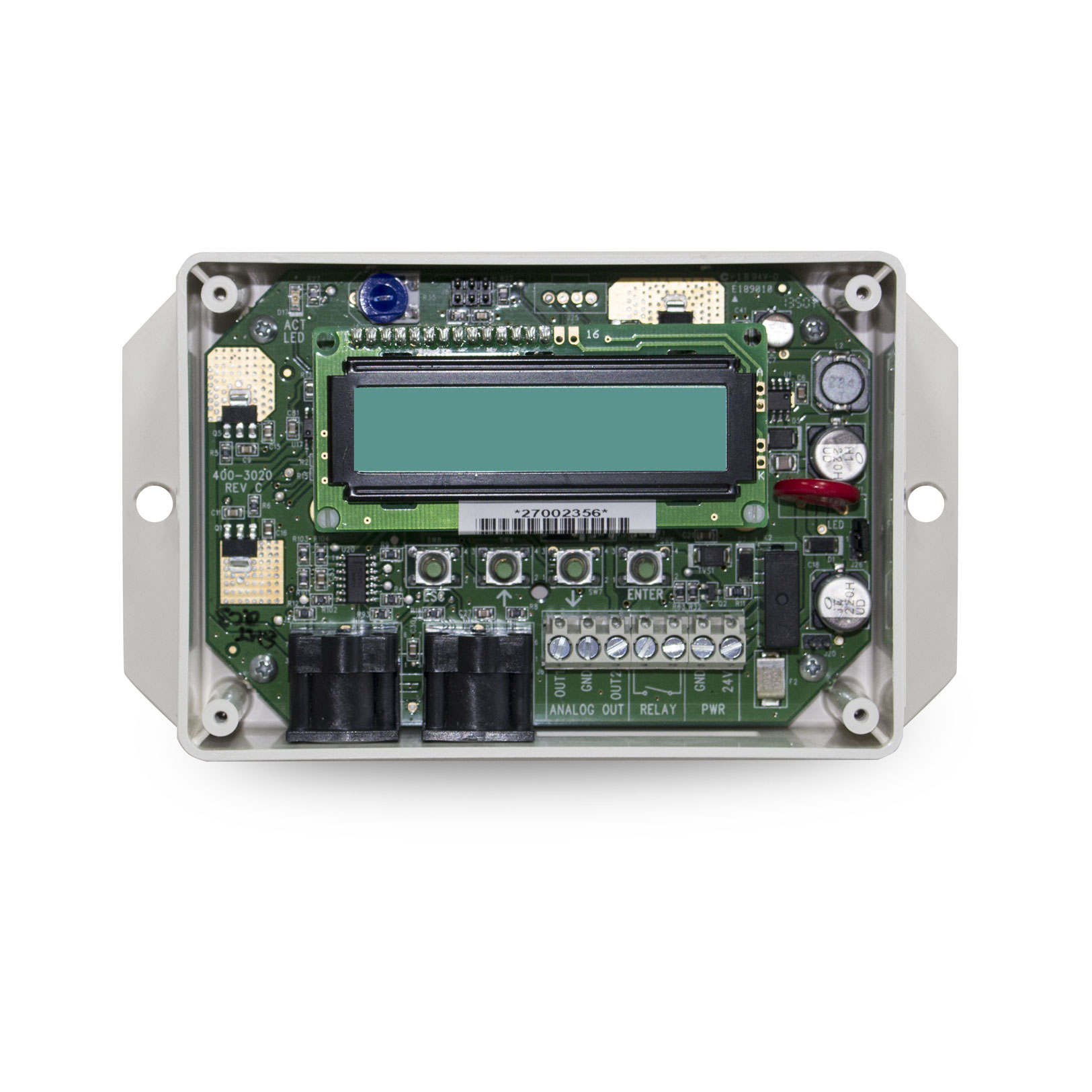

Display: 16-character alpha-numeric LCD
Navigation: 4-button interface
AO1
Assignment: Average airflow output signal of connected probes (P1 and/or P2) or P1 if AO2 is assigned to P2
Configurable Ranges: 0-5V, 0-10V or 2-10V
AO2
Assignment: Airflow output signal of P2, average temperature output signal of connected probes or notification alarm
Configurable Ranges: 0-5V, 0-10V or 2-10V
Note: The VDC output circuit can drive the input circuit of devices designed to measure 4-wire, 4-20 mA, current loops with a resistive load ≥250 ohms
R1
Type: Dry contact w/ onboard jumper to drive a remote LED
Assignment: Notification alarms
Status: Normally Open (N.O.)
Rating: 30 VDC or 24 VAC @ 3 amp. max.
Temperature: -20 to 120 ⁰F [-28.9 to 48.9 ⁰C]
Humidity: 5 to 95%
Important: Provide a weather-proof enclosure if the transmitter module is mounted outdoors
Power Requirement: 24 VAC (22.8 to 26.4 under load) @8.5V-A
Dimensions: 3.57H x 6.00W x 1.50D in.
[90.7 x 152.4 x 38.1 mm]
Airflow Measurement: Provides individual sensor node airflow rates to compatible GreenTrol transmitters and controllers
Temperature Measurement: Provides individual sensor node temperatures to compatible GreenTrol transmitters and controllers

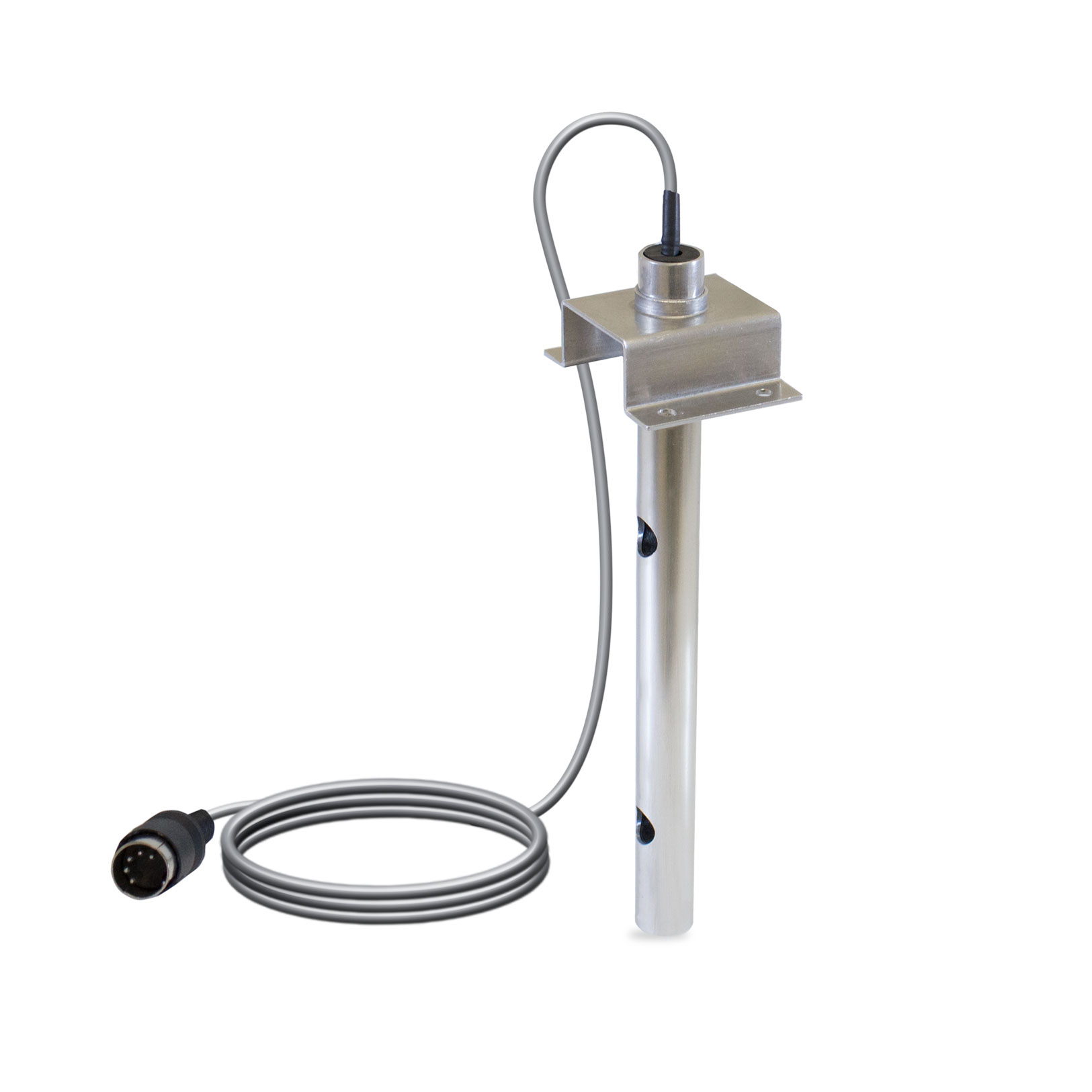

Type: –DI Duct Insertion Mount Thermal Dispersion Airflow and Temperature Measurement Probe
Available Configurations:
4 inch [102 mm]: 1 probe x 1 sensor node
5 to 16 inch [127 to 406 mm]: 1 probe x 2 sensor nodes
Sensing Node Sensors
Self-heated sensor: Precision, hermetically sealed, bead-in-glass thermistor probe
Temperature sensor: Precision, hermetically sealed, bead-in-glass thermistor probe
Probe Tube
Material: Mill finish 6063 aluminum
Probe Mounting Brackets
Material: 304 stainless steel
Probe Length: 4 in. to 16 in. [152.4 – 406.4 mm]
Sensing Node Housing
Material: Glass-filled Polypropylene
Sensor Potting Materials: Waterproof marine epoxy
Sensing Node Internal Wiring
Sensing Node Internal Wiring: Kynar® coated copper
Probe to Transmitter Cables
Material: FEP jacket, plenum rated CMP/FT6/CL2P, UL/cUL listed, -67 to 392 ⁰F [-55 to 200 ⁰C], UV tolerant
Standard Lengths: 3, 10, 25 and 50 ft. [ 0.91, 3.1, 7.6 and 15.2 m]
Connecting Plug: 0.60” [15.24 mm] nominal diameter
Airflow Measurement
Averaging Method: Independent, arithmetic average
Installed Accuracy: Better than ±4% of reading to NIST traceable airflow standards
Calibrated Range: 0 to 3,000 fpm [0 to 15.24 m/s]
Calibration Points: 7
Temperature Measurement
Averaging Method: Independent, velocity weighted
Accuracy: ±0.15⁰F [0.08 ⁰C]
Temperature: -20 to 160 ⁰F [-28.9 to 48.9 ⁰C]
Note: Temperature limits for operation may be limited by the transmitter or controller selected
Humidity: 0 to 100%
